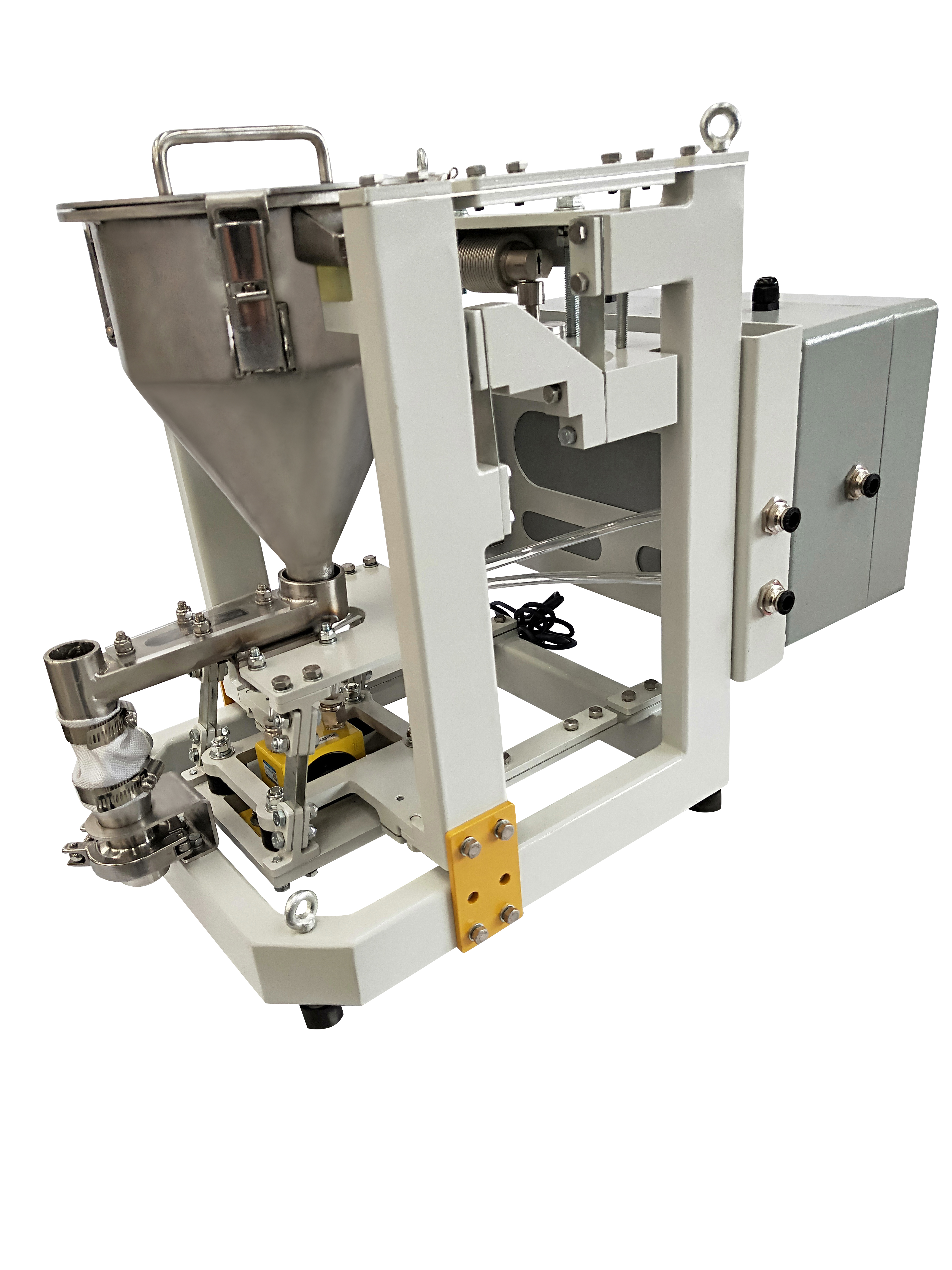

Pneumatically driven and explosion-proof loss-in-weight feeder

产品详情

Equipment Introduction


A loss-in-weight feeder that uses compressed air as the power source to drive a linear vibrator and controls the vibration feed rate to achieve the set flow rate.

Program Features


1、No electric drive.


2、Powered by compressed air, suitable for flammable and explosive environments.


3、No transmission components, no lubrication required, and pollution-free.


4Suitable for pharmaceutical, military, and flammable & explosive applications.

Specifications



Model

Flow Range

Hopper Volume

Range

Overall dimensions

Overall weight

Air consumption

FQ-10

1-50kg/h

25L

50kg

500x400x550

75kg

0.65Mpa, 0.3m³/min

FQ-50

10-500kg/h

80L

75kg

700x600x750

100kg

0.65Mpa, 0.6m³/min

FQ-100

100-2000kg/h

150L

100kg

800x800x950

150kg

0.65Mpa, 0.9m³/min
