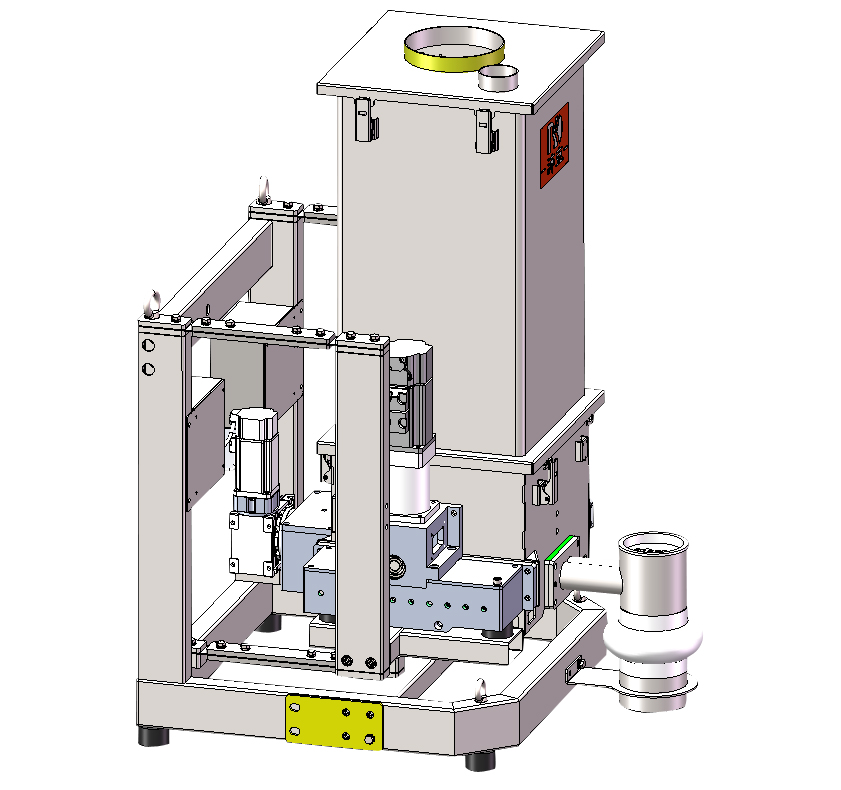

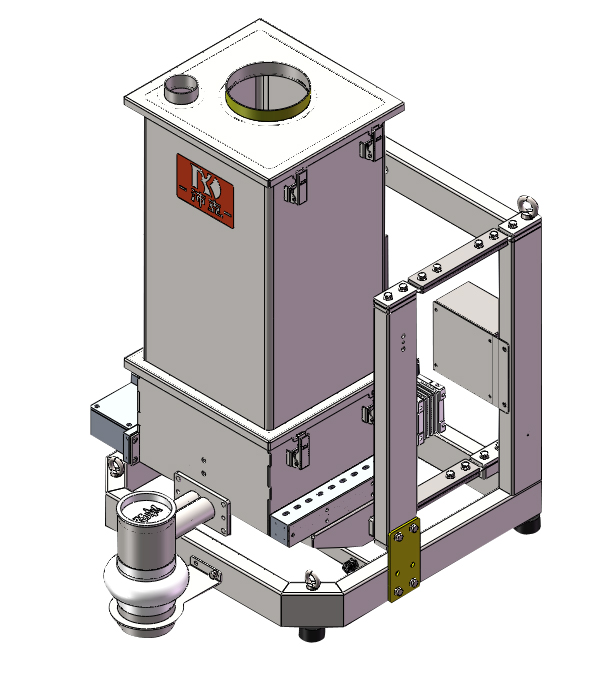

Multi-screw Loss-in-Weight Feeder

产品详情

Equipment Introduction

Provides a solution that enables powder and pellets to fall in a uniformly layered manner during descent, preventing stratification and bridging of powder-pellet mixtures during feeding and conveying.

Program Features


1、Suitable for compounding and pelletizing of low-smoke zero-halogen (LSZH) flame-retardant polyolefin cable compounds, or all pellet-powder mixtures.


2Cantilever suspension weighing frame, low center of gravity, eliminating interference from all non-vertical forces.


3Dual variable-frequency speed control, ensuring matching between feeding and dosing.


4Square hopper, prevents bridging, large loading capacity.


Specifications



Model

FD-30

FD-39

FD-46

FD-56


Flow Range

20-100kg/h

50-300kg/h

100-600kg/h

200-1200kg/h

Hopper Volume

50L

100L

200L

350L

Standard Features

Teflon coating

Teflon coating

Teflon coating

Teflon coating
