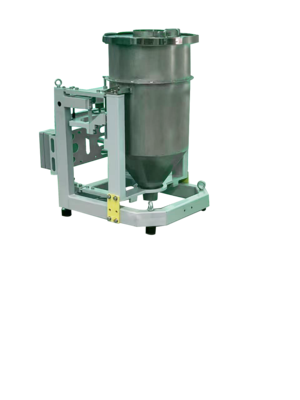

Meter Weight Control Scale

Equipment Introduction

It is used for process control during the extrusion of plastic pipes, cables, optical cables, plastic films and other products. Integrated with a length counter, thickness gauge and haul-off machine, it continuously measures the material consumption of the extruder and collects real-time data such as screw speed and haul-off speed from the extrusion line to form a closed-loop control system. After setting the target meter weight or output rate, the system adjusts the screw speed and haul-off speed in real time based on an adaptive algorithm according to the setpoint, thereby achieving real-time control of the pipe wall thickness.

Program Features

1、 Equipped with high-precision encoders to measure the main machine speed and meter wheel speed.

2、Cantilever suspension weighing frame, low center of gravity, eliminating interference from all non-vertical forces.

3、The scale body features an independent support frame, ensuring that signal acquisition is free from interference caused by the main machine vibration.

4、Displays cumulative total, real-time flow rate, and meter weight in real time, with traceable query available.

Specifications
