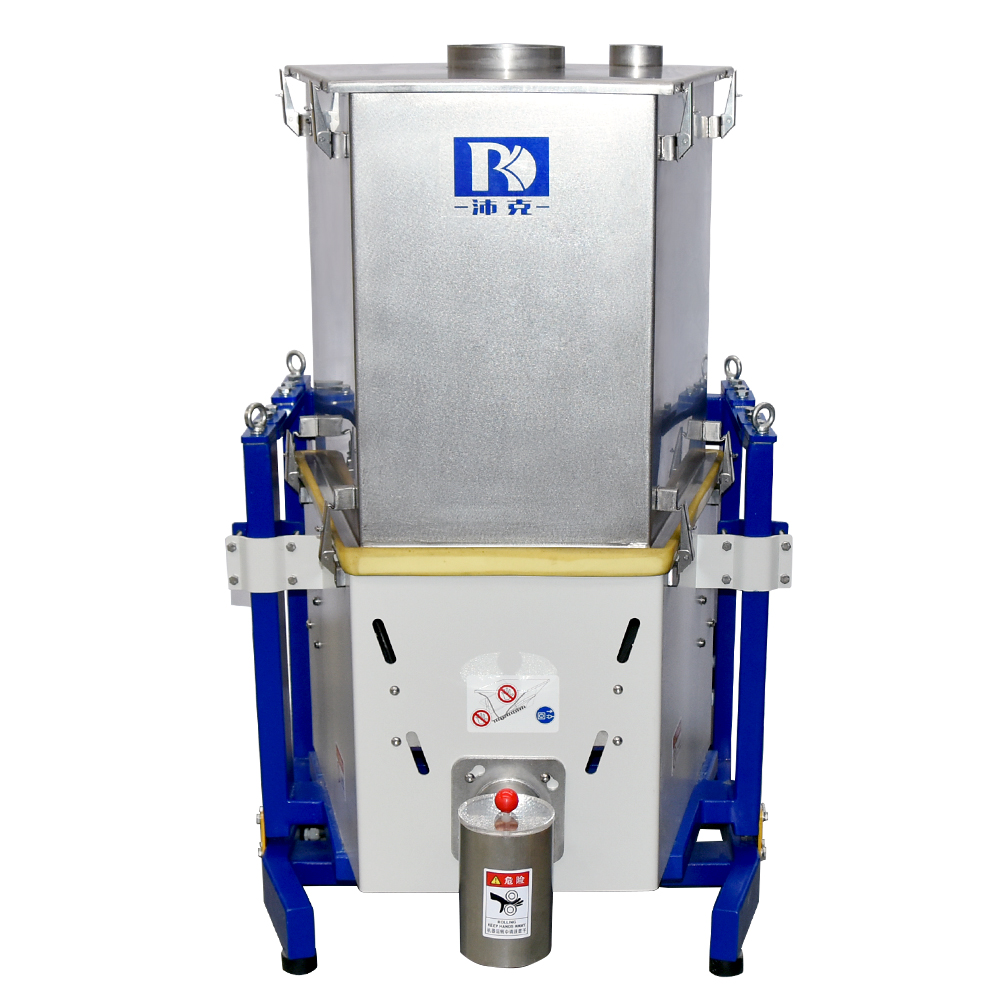

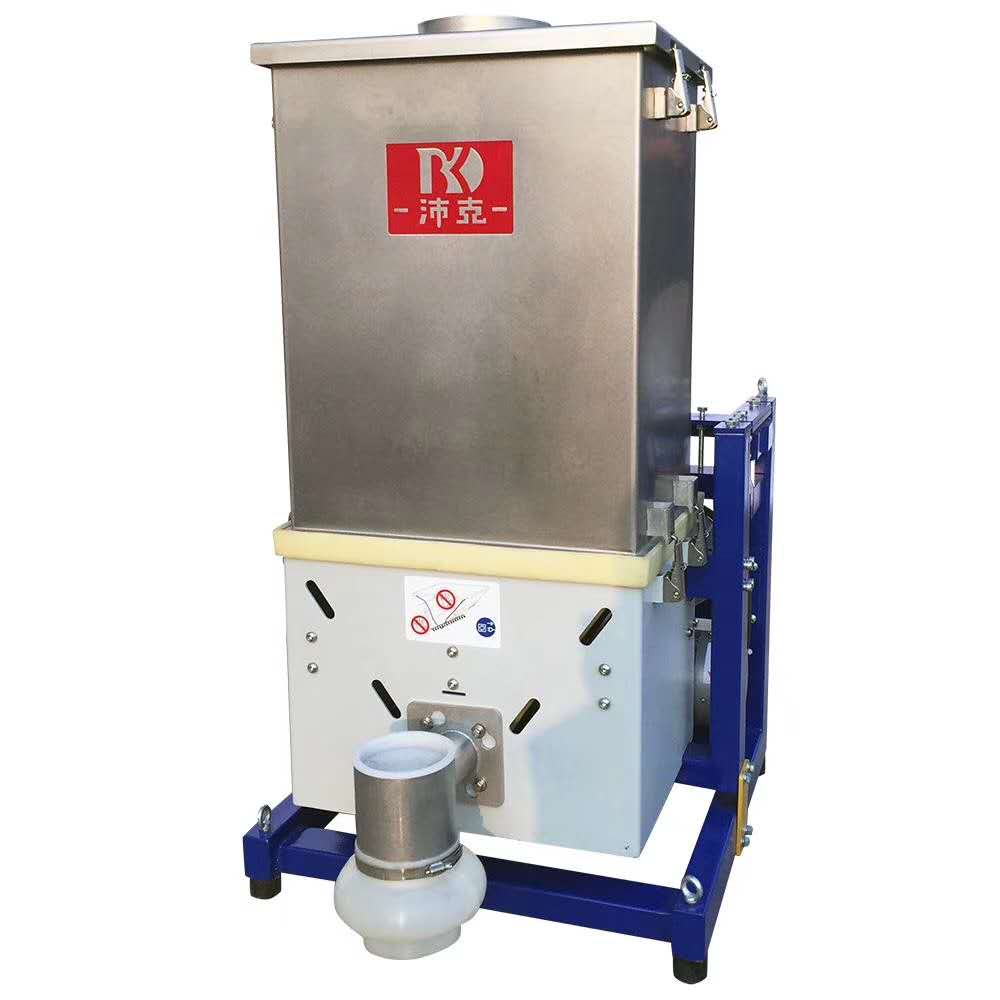

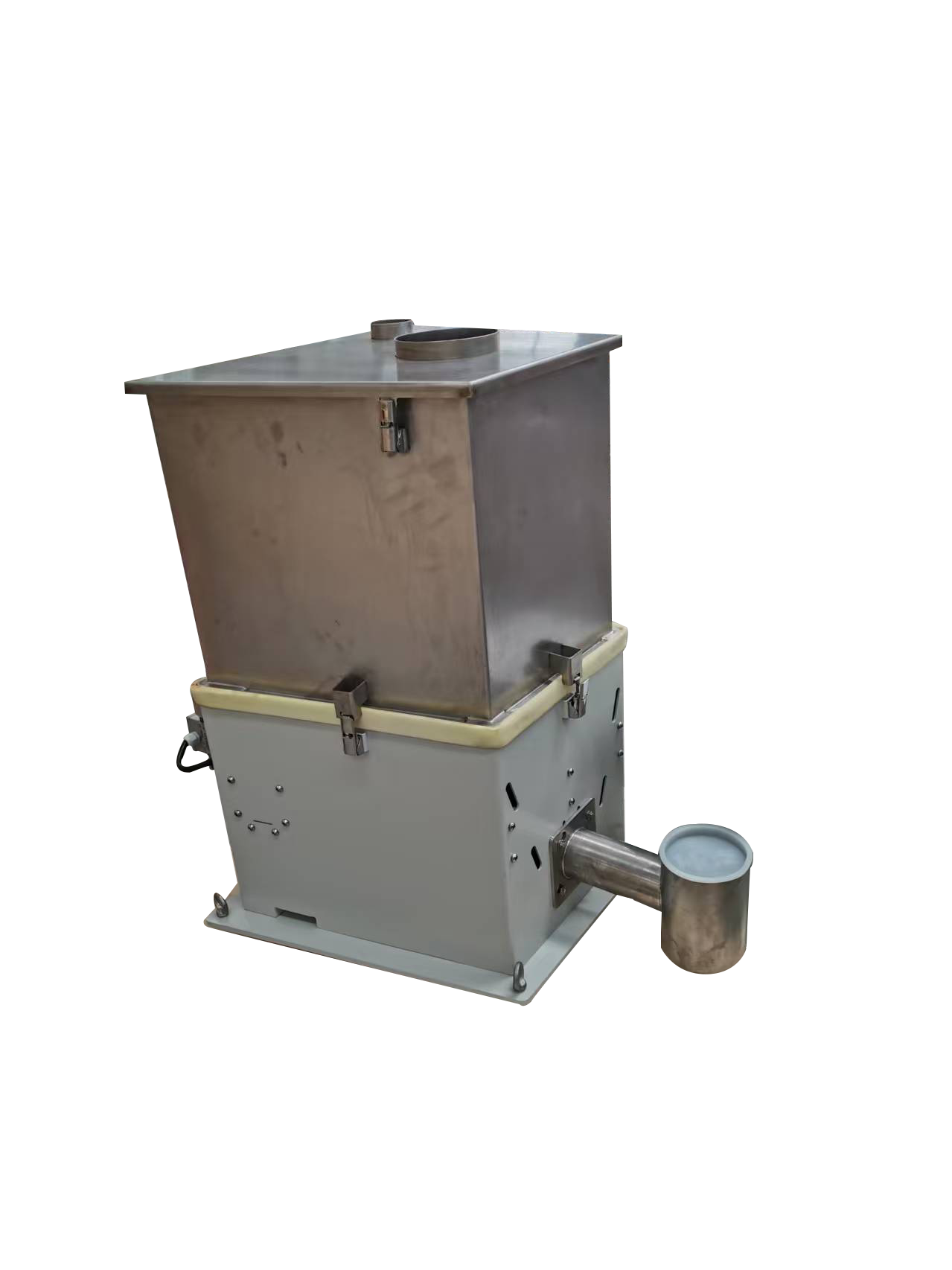

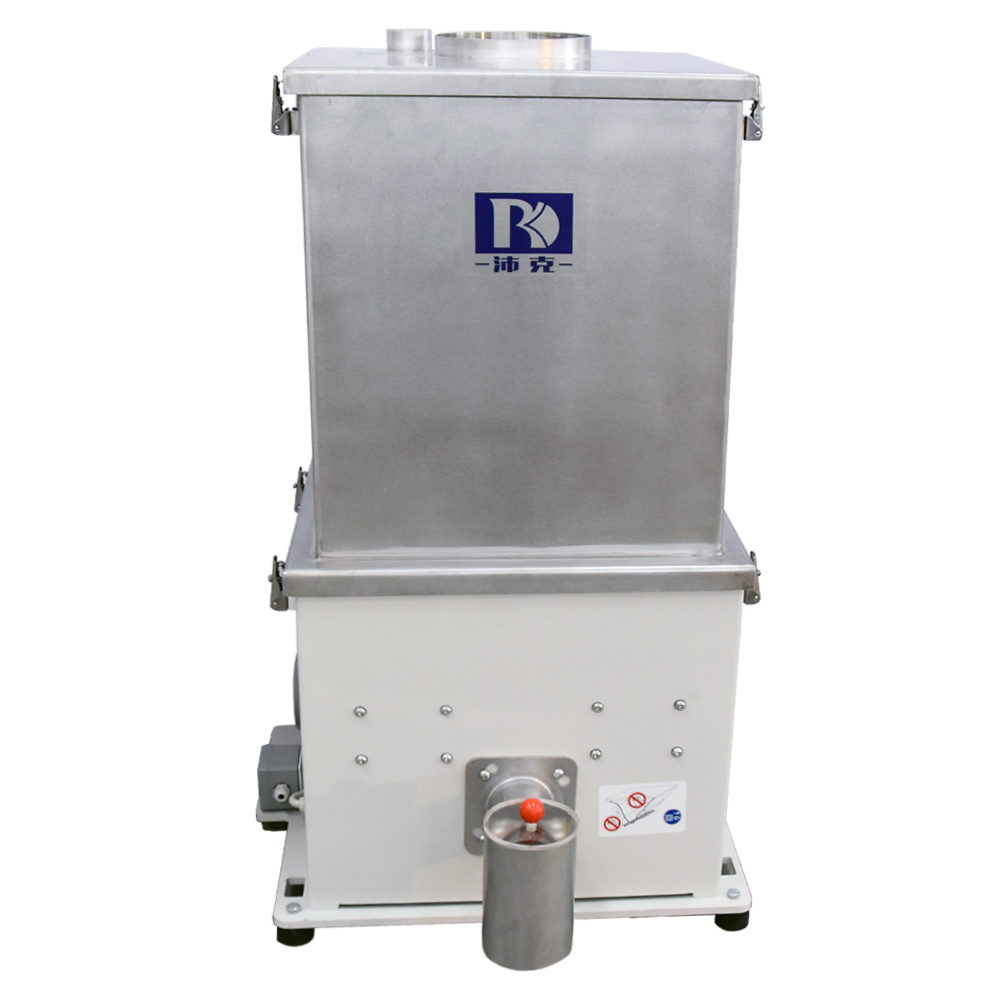

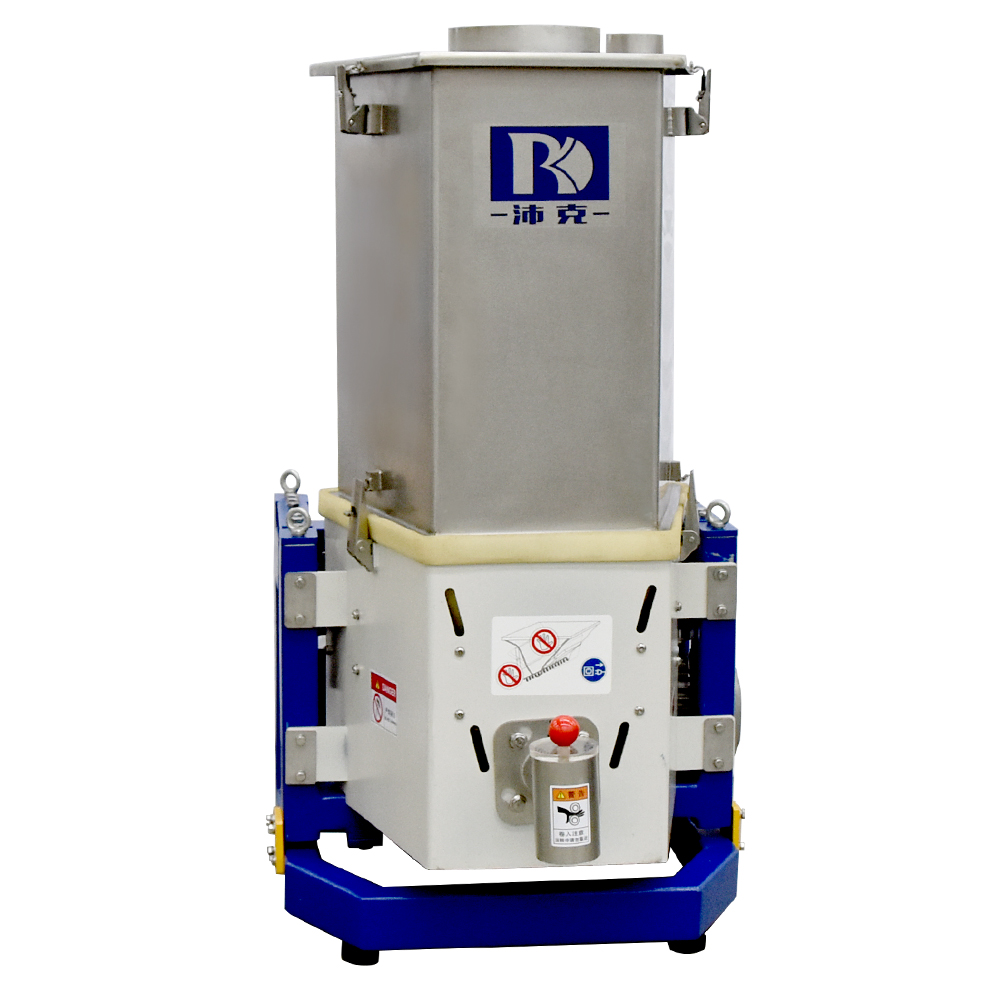

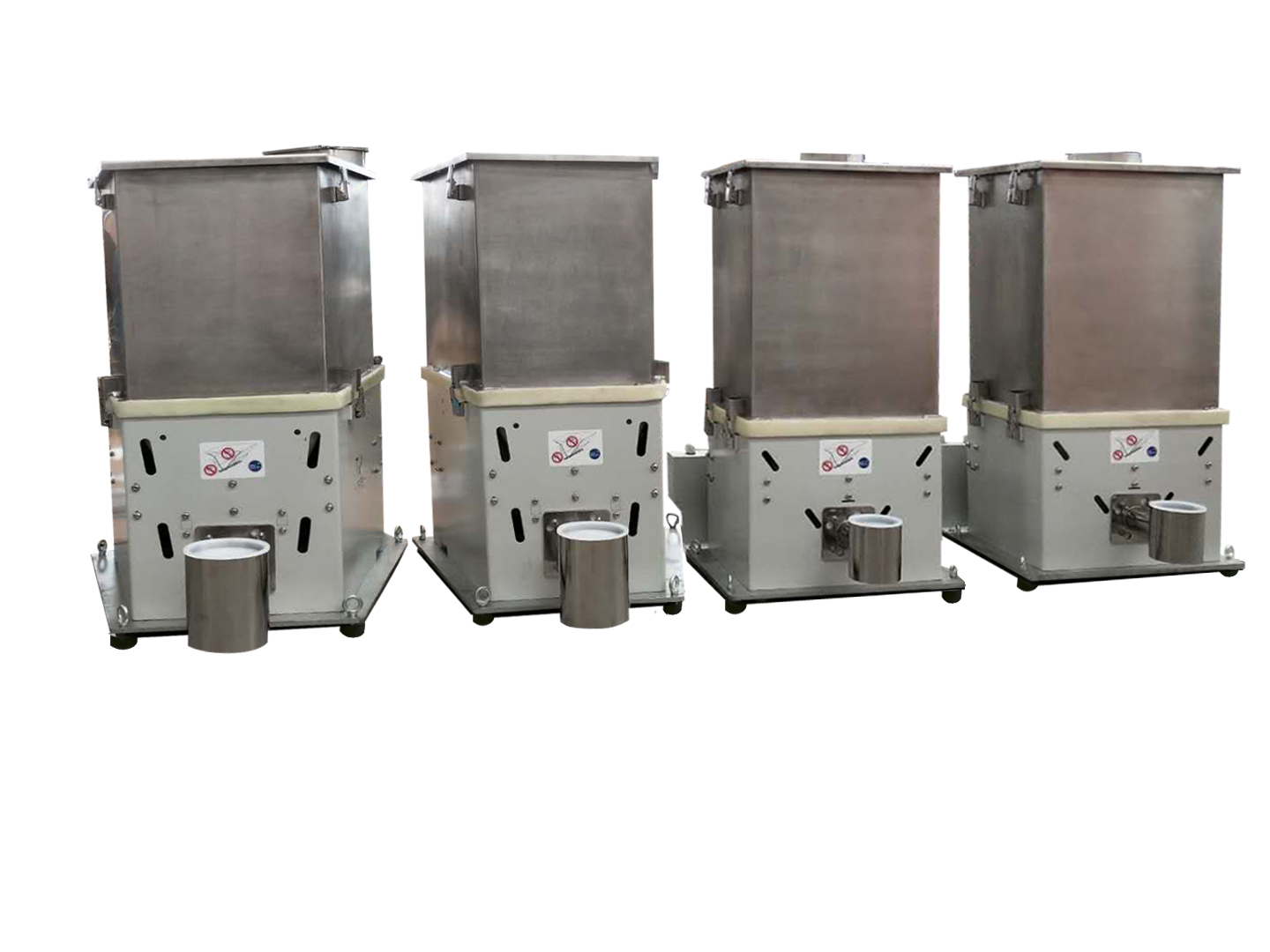

A flexible hopper feeder is a precision weighing device specifically designed to solve flow problems such as bridging and rat-holing that commonly occur with powder and granular materials during continuous feeding.Its core design uses flexible connectors—typically bellows, airbags, or similar components made of elastic materials like rubber, silicone, or specialty fabrics—to replace the rigid connections between a conventional rigid hopper and the weighing unit or support structure, delivering a range of unique advantages.
Program Features
1、Equipped with an independent, adjustable external beating device for arch breaking, deagglomeration and material activation.
2、Cantilever suspension weighing frame, low center of gravity, eliminating interference from all non-vertical forces.
3、Stainless steel bellows sensor, featuring small deformation and equipped with a protective sleeve, suitable for harsh chemical environments.
4、Digital transmission of weighing signals, interference-free and non-attenuating.
5、The hopper is extremely easy to disassemble and clean.
6、The beating unit does not come into contact with the material, ensuring safe cleaning and protecting operators from stirring-related injuries.
7、The tapping action is gentle and does not damage the original physical characteristics of the material.
8、Improve material flowability in the hopper, optimize screw filling, and achieve more stable flow rates.
