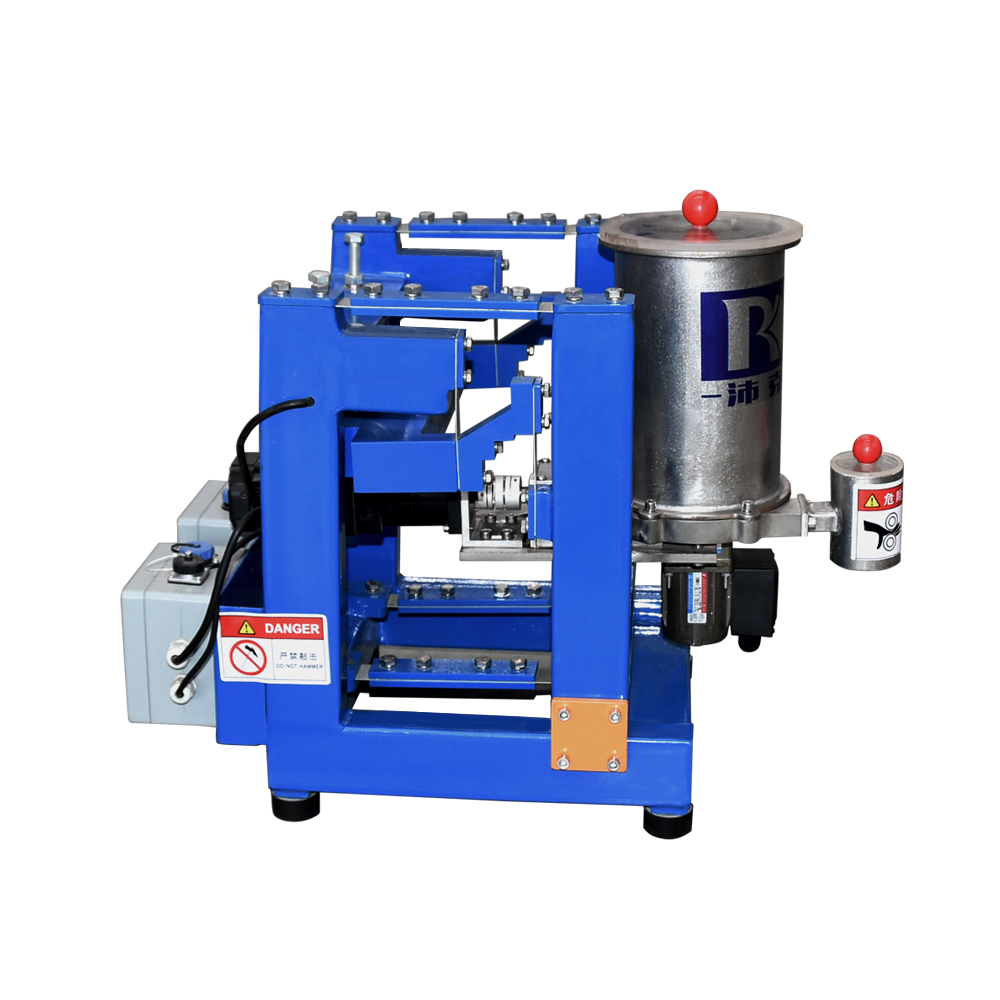

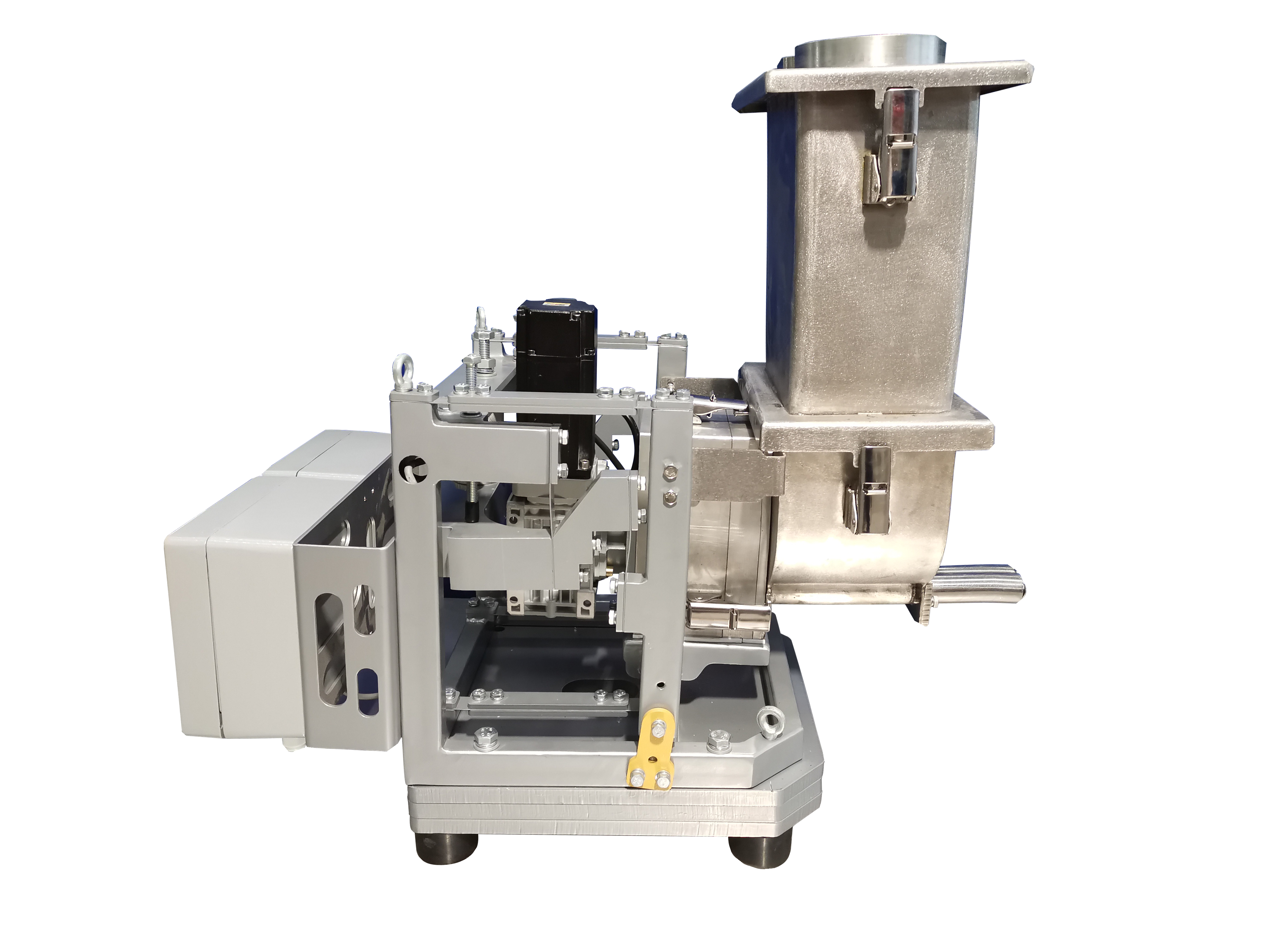

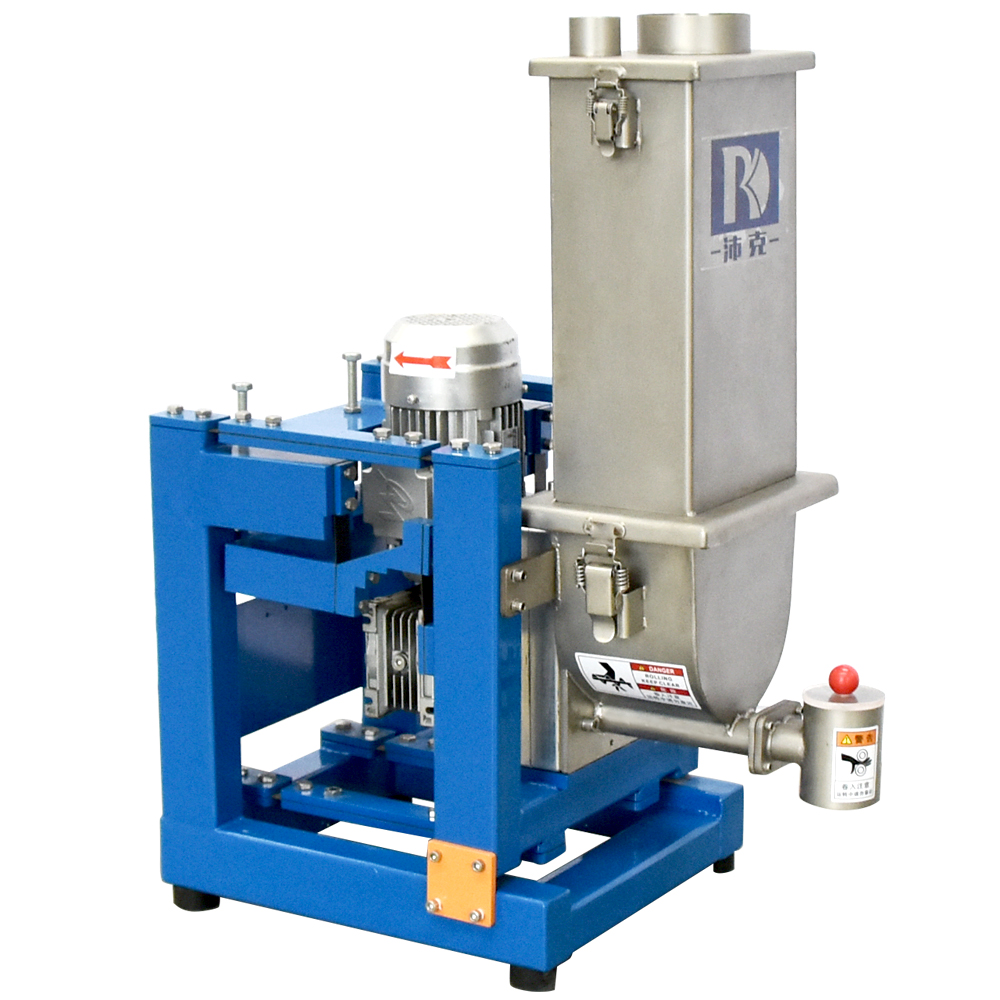

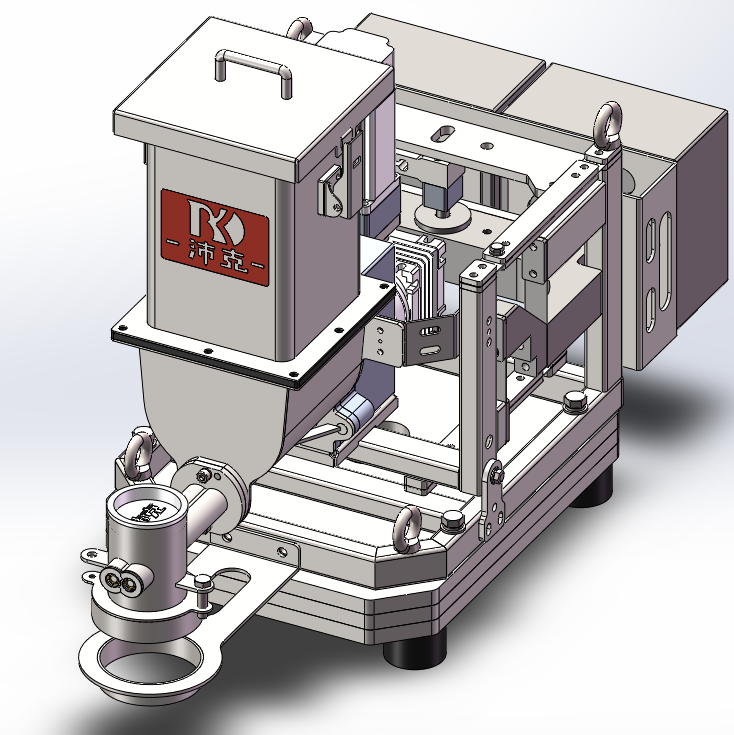

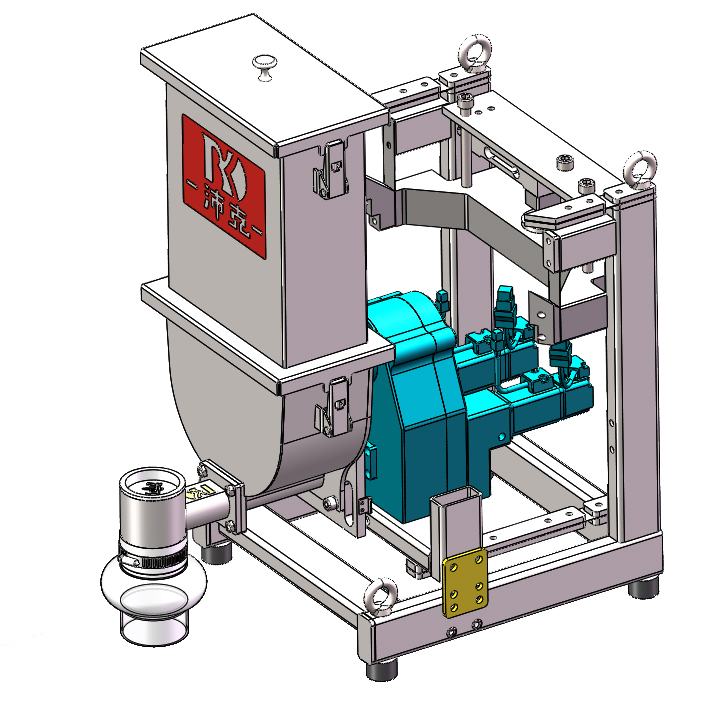

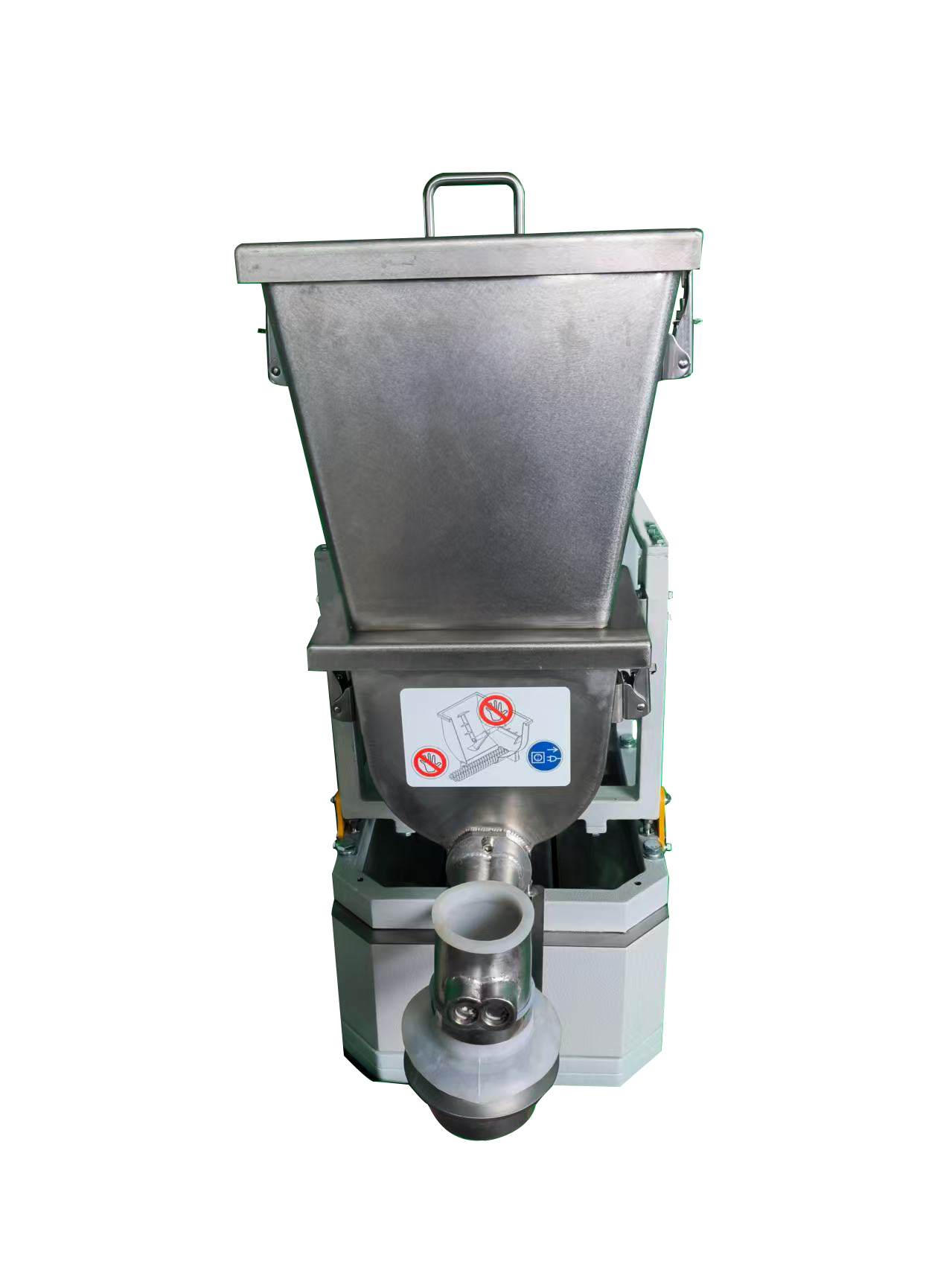

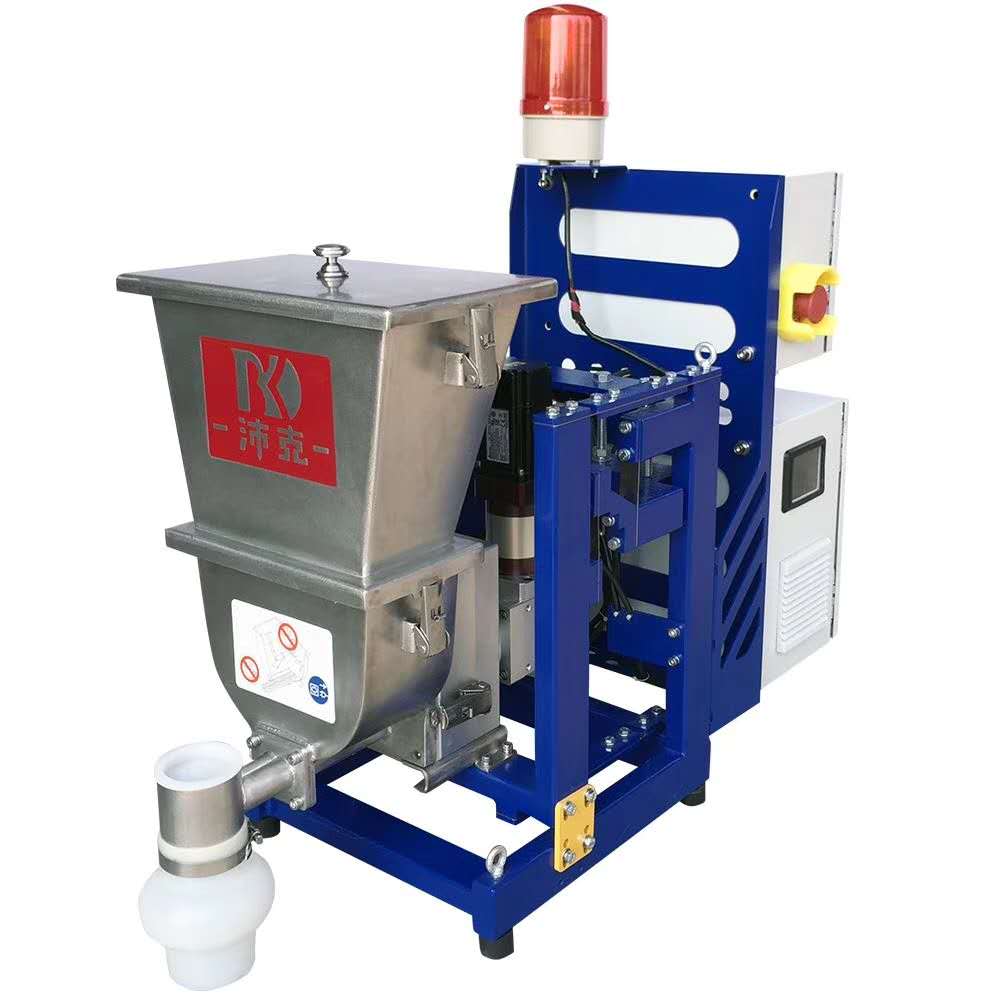

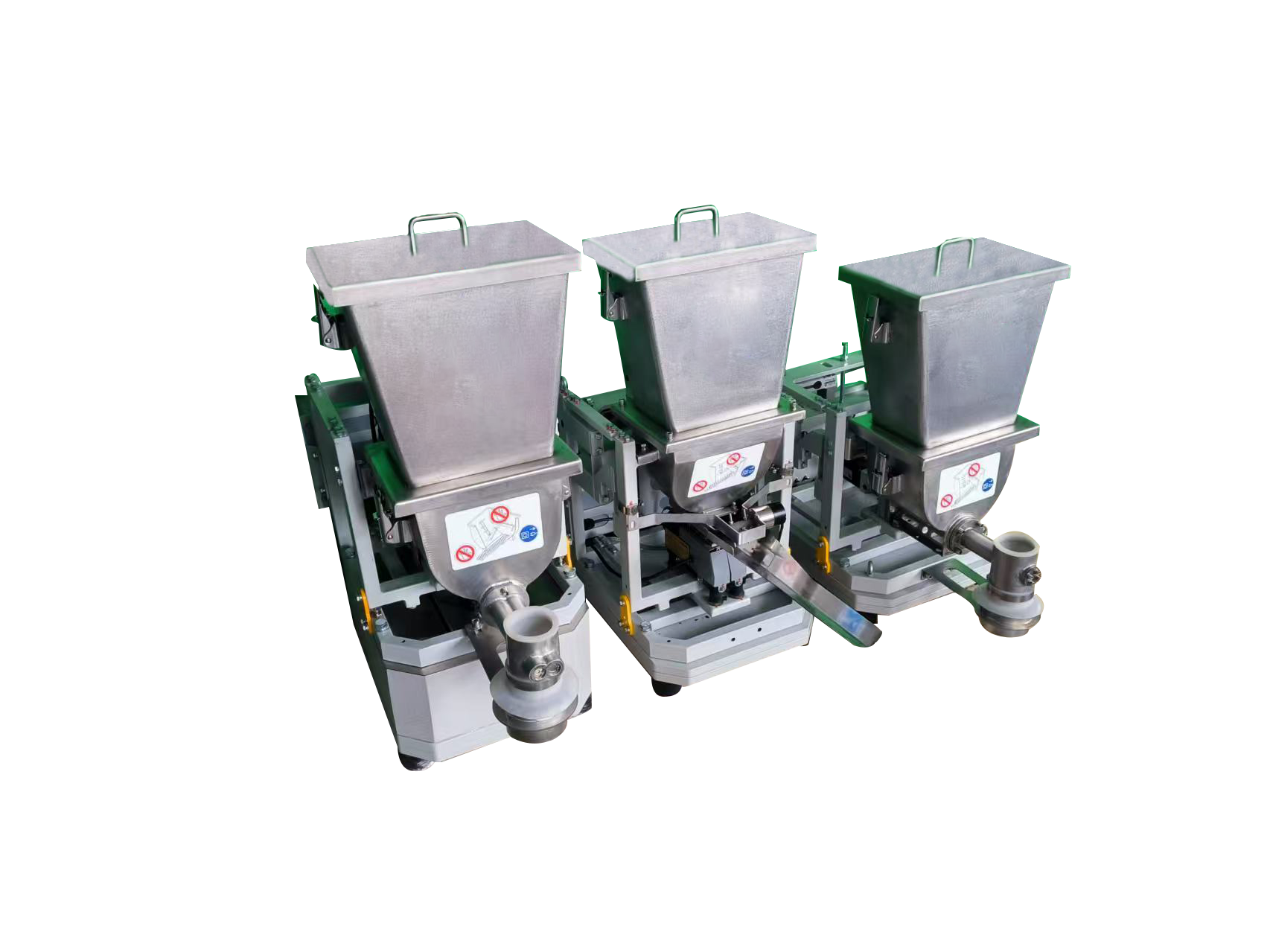

Micro Twin Screw Loss-in-Weight Feeder

Equipment Introduction

For powders or pellet-powder mixtures with poor flowability, co-rotating twin-screw conveying is adopted. The two screws feature a self-cleaning function and are typically self-cleaning solid twin screws. This design offers the advantages of stable metering and high accuracy.

Program Features

1、Cantilever suspension weighing frame, low center of gravity, eliminating interference from all non-vertical forces.

2、U-shaped hopper, preventing material bridging effectively.

3、Integrated gearbox. The housing is CNC-machined from 6061 aluminum alloy, not cast aluminum.

4、Accuracy class: ±0.5%

5、Mainly used for powders such as antioxidants, colorants, activated carbon, etc.

Specifications
