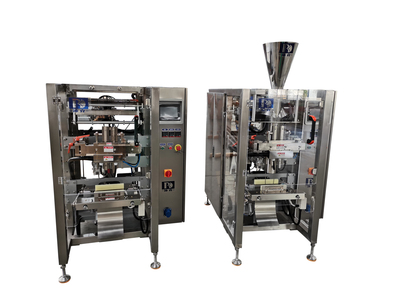

Vertical weighting packing machine
Application: granules; powders; plastics and cables;
Equipped with multiple weighting solutions; applicable for vacuum packing; nitrogen packing and fixed shaping pakcing;
Model | Bag size | Film width | Film thickness | Packing speed | Measuring range | Packing material | Weight | Dimension LxWxH | Power |
FG-320 | (L) 50-200 (W) 50-150 | Max.320mm | 0.04-0.10mm | 20-90 bags/min | Max.500ml | PET/PE, PE 、ETC | 350kg | L950 x W650 x H1650mm | 2.4kw |
FG-420 | (L) 80-300mm (W) 80-200mm | Max.420mm | 0.04-0.10mm | 20-90 bags/min | Max.1000ml | PET/PE, PE 、ETC | 450kg | L1320 x W1050 x H1750mm | 2.8kw |
FG-520 | (L) 100-350mm (W) 100-250mm | Max.520mm | 0.04-0.10mm | 20-80 bags/min | Max. 2000ml | PET/PE, PE 、ETC | 550kg | L1520 x W1170 x H1770mm | 3kw |
FG620 | (L) 100-420mm (W) 140-300mm | Max.620mm | 0.04-0.10mm | 10-50 bags/min | Max.3000ml | PET/PE, PE 、ETC | 700kg | L1600 x W1400 x H1900mm | 3.5kw |
FG720 | (L) 150-450mm (W) 150-350mm | Max.720mm | 0.04-0.10mm | 10-40 bags/min | Max.5000ml | PET/PE, PE 、ETC | 800kg | L1650 x W1400 x H2080mm | 4kw |
FG-820 | (L) 200-500mm (W) 200-385mm | Max.820mm | 0.04-0.10mm | 10-20 bags/min | Max.7500ml | PET/PE, PE 、ETC | 900kg | L2300 x W1650 x H2000mm | 4.5kw |
FG-1050 | (L) 300-750mm (W) 300-400mm | Max.1050mm | 0.04-0.10mm | 5-10 bags/min | Max.9000ml | PET/PE, PE 、ETC | 1200kg | L2500 x W1800 x H2200mm | 5.5kw |
FG-1200 | (L) 400-900mm (W) 400-500mm | Max.1200mm | 0.04-0.10mm | 1-3 bags/min | Max.12000ml | PET/PE, PE 、ETC | 1500kg | L2500 x W1800 x H2200mm | 8kw |
