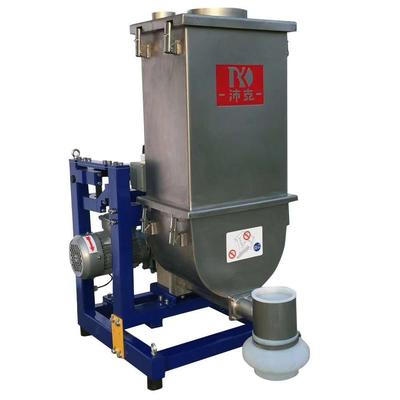

Twin screw type
1、Application field
Application: Resin granules, Resin powder, Calcium carbonate, French chalk,TiO2, Carbon black.
2、Features
(1)Features: independent stirring; adjustable speed;
(2)Frame Weighing platform, low barycenter, weak vibration, safe accuracy control
(3)Stainless steel bellows sensor, slight deformation even after long-time use. With protection system, qualified at hard chemical line.
(4)Mirror Hopper, U shaped hopper,Material is not easy to bridge
(5)Digital transmission of weight data guarantees precise and stable feed control.
3、Parameter
Model | Capacity range | Volume | Scale platform | Range | Net Weight | Dimension LxWxH | Power |
FT-20 | 3-30kg/h | 25L | Cantilever sling | 30kg | 60kg | 790X375X680 | 200+400W |
FT-30 | 15-150kg/h | 50L | Cantilever sling | 75kg | 80kg | 975X470X965 | 370+200W |
FT-39 | 50-300kg/h | 80L | Cantilever matrix | 200kg | 100kg | 1065X540X1150 | 550+400W |
FT-46 | 100-800kg/h | 150L | Cantilever matrix | 250kg | 120kg | 1135X610X1300 | 750+400W |
FT-56 | 200-1500kg/h | 250L | Cantilever matrix | 300kg | 150kg | 1160x650x1400 | 1100+400W |
※1.Capacity range value is calculated based on materials with stacking density 0.6g/m
※2.Dynamic accuracy vale is tested based on working condition status longer than at least 30 seconds.
